Send InquiryPowder Coated Ladder Tray
Price 105-1205 INR/ Meter
Powder Coated Ladder Tray Specification
- Surface Finish
- Powder Coated
- Max. Working Load
- 150 kg/m
- Deflection
- Less than 6 mm at max load
- Product Type
- Ladder Type Cable Tray
- Material
- Mild Steel (MS)
- Standard Thickness
- 2.0 mm
- Length
- 2500 mm
- Width
- 150 mm
- Side Rail Height
- 50 mm
- Weight
- Approx. 12 kg per piece
- Dimension (L*W*H)
- 2500 mm x 150 mm x 50 mm
- Color
- Grey
- Customization
- Available on request
- Edge Type
- Rounded edges for safety
- Usage/Application
- Industrial cable management
- Shape
- Rectangular
- Connection Type
- Bolted joints
- Installation Type
- Indoor / Outdoor
- Corrosion Resistance
- Excellent
- Temperature Range
- -20°C to 80°C
- Fire Resistance
- Yes
- Coating Type
- Epoxy Polyester Powder
- Rung Spacing
- 250 mm
- Packing Details
- Shrink wrap with protective corners
Powder Coated Ladder Tray Trade Information
- Minimum Order Quantity
- 100 Meter
- Supply Ability
- 500 Per Day
- Delivery Time
- 2-3 Days
About Powder Coated Ladder Tray
Powder Coated Ladder Tray is the one used in industries, office buildings, metro stations, schools etc. These are powder coated cable trays and are proven to be highly durable and robust in built. Powder Coated Ladder Tray is free from corrosion and can sustain high load. We strive to deliver this on time.
Epoxy Polyester Powder Coating
The ladder tray is treated with epoxy polyester powder for an advanced surface finish. This coating provides outstanding corrosion resistance and maintains the trays color and integrity, even in harsh industrial settings. The finish also enhances fire resistance, making it suitable for environments with strict safety requirements.
Robust Industrial Cable Management
Designed for rigorous cable support, the tray features sturdy bolted joints and a high-capacity load rating of 150 kg/m. Rung spacing of 250 mm ensures organized cable arrangement and easy maintenance. With dimensions of 2500 mm x 150 mm x 50 mm, it accommodates substantial cabling for efficient industrial operations.
Installation Versatility and Safety
With suitability for both indoor and outdoor use, installation of this tray is straightforward. Rounded edges reduce injury risks during handling and maintenance. The trays robust construction, protective shrink wrap packaging, and customizable options make it a safe and flexible solution for diverse deployment scenarios.
FAQs of Powder Coated Ladder Tray:
Q: How is the powder coated ladder tray installed in industrial settings?
A: The ladder tray is installed using bolted joints, enabling secure and stable mounting. Its rectangular shape and standardized dimensions (2500 mm x 150 mm x 50 mm) facilitate easy alignment and integration into cable management systems for both indoor and outdoor environments.Q: What are the benefits of epoxy polyester powder coating on the ladder tray?
A: Epoxy polyester powder coating provides excellent corrosion and fire resistance, maintaining the trays durability and appearance over time. It shields the mild steel material from harsh elements and minimizes maintenance, ensuring long-term reliability and safety.Q: When should I consider using this ladder tray for cable management?
A: This ladder tray is ideal for industrial applications where heavy cable support and strong resistance to fire and corrosion are required. Its design and load capacity make it suitable for new installations or upgrades in manufacturing plants, warehouses, and commercial facilities.Q: Where can this ladder tray be installed, and is it suitable for outdoor use?
A: The tray is engineered for both indoor and outdoor installations, thanks to its robust construction and weather-resistant coating. It performs reliably in industrial cable management settings, regardless of environmental conditions.Q: What is the process of customizing ladder tray dimensions or specifications?
A: Customization is available upon request. Clients can coordinate with the manufacturer or supplier to specify required dimensions, colors, or other features. This process ensures the tray matches exact project requirements and installation conditions.Q: How does the rung spacing benefit cable management and maintenance?
A: With 250 mm spacing between rungs, the tray supports organized cable arrangement and allows easy access for maintenance. This design prevents cable overcrowding and helps ensure efficient, safe upkeep throughout the trays lifespan.Q: What are the primary safety features of the powder coated ladder tray?
A: Rounded edges, fire-resistant coating, and robust bolted connections collectively enhance safety. These features minimize handling risks, prevent accidental cuts, and uphold structural integrity under maximum working loads, benefiting installers and daily operations.
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Cable Tray Category
Hot Dip Galvanised Ladder Tray
Price 105-1205 INR / Meter
Minimum Order Quantity : 100
Surface Finish : Other, Hot Dip Galvanised
Color : Other, Silver/Grey (Galvanised)
Material : Other, Hot Dip Galvanised Steel
Length : 2500 mm
Aluminium Cable Tray
Price 105-1205 INR / Meter
Minimum Order Quantity : 100
Surface Finish : Other, Anodized
Color : Other, Silver
Material : Other, Aluminium
Length : 2500 mm

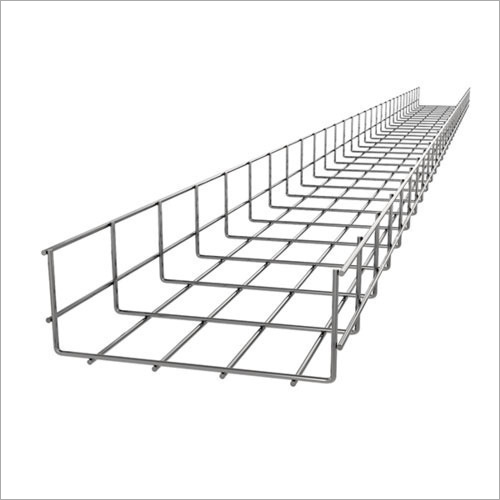

Wire Mesh Cable Tray
