Cable Tray

• Color
• Other, Silver

• Conductor Material
• Other, Aluminium

• Deflection
• 2.5 mm

• Dimension (L*W*H)
• 2500 mm x 150 mm x 75 mm

• Length
• 2500 mm

• Material
• Other, Aluminium

• Max. Working Load
• 75 kg/m

• Product Type
• Other , Perforated Cable Tray

• Side Rail Height
• 75 mm

• Standard Thickness
• 2.5 mm

• Surface Finish
• Other, Anodized

• Weight
• 2.2 kg/m

• Width
• 150 mm

• Color
• Other, Silver/Grey (Galvanised)

• Conductor Material
• Other, Mild Steel

• Deflection
• Less than 5 mm at max load

• Dimension (L*W*H)
• 2500 mm (L) x 150-1200 mm (W) x 50-150 mm (H)

• Length
• 2500 mm

• Material
• Other, Hot Dip Galvanised Steel

• Max. Working Load
• Up to 200 kg/m depending on tray size and support spacing

• Product Type
• Other , Cable Ladder Tray

• Side Rail Height
• 50 mm to 150 mm

• Standard Thickness
• 1.6 mm, 2.0 mm, 2.5 mm, 3.0 mm

• Surface Finish
• Other, Hot Dip Galvanised

• Weight
• Depends on size and thickness, e.g. approx. 15-30 kg/pcs

• Width
• 150 mm to 1200 mm

• Color
• Other, Metallic (silver) or custom powder coating

• Conductor Material
• Other, Steel wire

• Deflection
• <10 mm at max load

• Dimension (L*W*H)
• 2500 mm x 100600 mm x 3575 mm

• Length
• 2500 mm

• Material
• Other, GI (Pre-galvanized, Hot-Dip Galvanized), SS304, SS316, Mild Steel (MS)

• Max. Working Load
• Up to 35 kg/m (depending on tray size & installation)

• Product Type

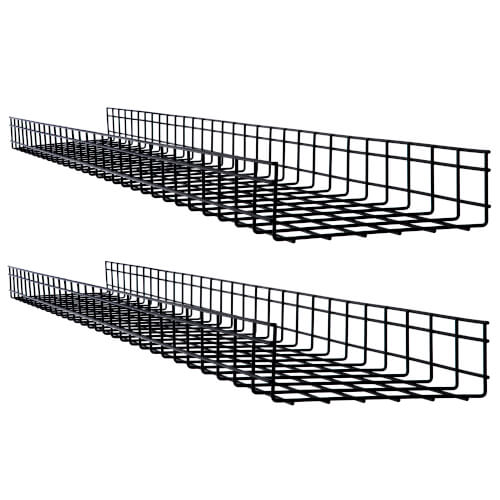

• Other , Wire Mesh Cable Tray

• Side Rail Height
• 35 mm, 50 mm, 75 mm (based on tray width)

• Standard Thickness
• 3 mm to 6 mm (custom options available)

• Surface Finish
• Other, Electrogalvanized / Hot Dip Galvanized / Powder Coated / Plain SS

• Weight
• Varies with material & size; approx. 2.5 kg/m to 7.5 kg/m

• Width
• 100 mm to 600 mm (customizable)

• Color
• Other, Grey

• Deflection
• Less than 6 mm at max load

• Dimension (L*W*H)
• 2500 mm x 150 mm x 50 mm

• Length
• 2500 mm

• Material
• Other, Mild Steel (MS)

• Max. Working Load
• 150 kg/m

• Product Type
• Other , Ladder Type Cable Tray

• Side Rail Height
• 50 mm

• Standard Thickness
• 2.0 mm

• Surface Finish
• Powder Coated

• Weight
• Approx. 12 kg per piece

• Width
• 150 mm

• Color
• Other, Grey or as per requirement

• Deflection
• Within permissible limits as per standards

• Dimension (L*W*H)
• Customizable (e.g., 2500 mm x 300 mm x 50 mm)

• Length
• 2500 mm

• Material
• Other, Mild Steel (MS)

• Max. Working Load
• As per IS specification

• Product Type
• Other , Powder Coated Cable Tray

• Side Rail Height
• 50 mm to 150 mm

• Standard Thickness
• 1.2 mm to 2.5 mm

• Surface Finish
• Other, Epoxy Polyester Powder Coated

• Weight
• Varies as per size and thickness

• Width
• 150 mm to 900 mm

• Color
• Any Color

• Conductor Material
• Aluminum

• Material
• Steel

• Surface Finish
• GI Galvanized

• Warranty
• Yes

• Color
• Other, Silver

• Conductor Material
• Other, Mild Steel / Stainless Steel

• Deflection
• Less than 6 mm at full load

• Dimension (L*W*H)
• 3000 mm x 100-600 mm x 35-100 mm

• Length
• 3000 mm

• Material
• Other, Stainless Steel / Galvanized Steel

• Max. Working Load
• 65 kg/m

• Product Type
• Other , Wire Mesh Cable Tray

• Side Rail Height
• 35 mm to 100 mm

• Standard Thickness
• 1.5 mm to 2.5 mm

• Surface Finish
• Other, Electro Galvanized / Hot Dip Galvanized / Chrome Plated

• Weight
• 1.5 kg/m to 4.2 kg/m

• Width
• 100 mm to 600 mm
